GIS-R20 Managed WiFi Hotspot Gateway


The GIS-R20 Hotspot Gateway plugs into your current router and provides controlled access to the Internet.
Works with all Internet connected devices!



Where to Buy

Product GIS-R20


The GIS-R20 Hotspot Gateway allows you to safely and securely share your Internet connection with your guests.

Main features include displaying a custom login page, capturing user data for marketing and managing users with a range of powerful tools. You can choose how you want to provide Internet access.


Bandwidth controls to improve quality of service (QoS) on the unit can be enabled to limit user download and upload speed, spreading the available bandwidth evenly across users. You can also set time and data limits per user from any device connected to your network.

The GIS-R20 Hotspot Gateway is a simple plug and play installation, requiring no specialist knowledge.


The login page will allow your guests access to the Internet using the following methods:

Providing email address and other information
Login with a pre-generated login code
Automatic billing for Internet access
Agree to terms and conditions
or Open Access

Authentication
No limit to the number of users
Throughput: up to 600Mb/s
Access code database: 10000

Ethernet
WAN1-WAN2: RJ-45 1Gb/s
LAN1-LAN4: RJ-45 1Gb/s

Dimensions and power
43cm x 30cm x 4.5cm (1U)
110v/220v supply 24W

WARRANTY
1 year
Features
Peer to Peer Blocking
Works with any Access Point
Fully customizable login page
Access Code login
Set bandwidth limits per user
Cloud Management
Data limits
Multi WAN - Load balancing and failover
Robust firewall
Facebook login
Email and data collection
Content filtering
1. Connect your GIS-R20 to your current router using the Ethernet cable provided and power up.

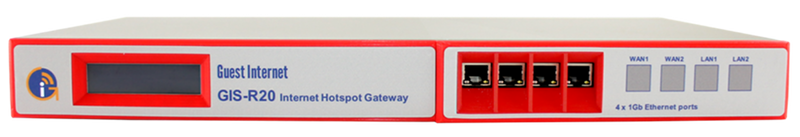

GIS-R20 Ports

2. Now, connect your computer, tablet or phone to the GIS-R20 either via Ethernet or wirelessly using an access point.

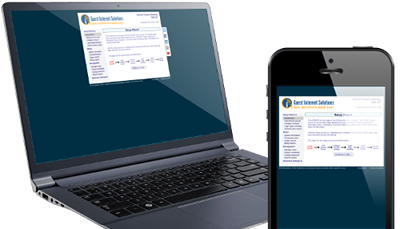

Wizard Setup Page Product GIS-R20

3. Visit http://aplogin.com/admin and follow the step-by-step wizard.

It's as simple as that.
