GIS Product Range



Use the Bandwidth Calculator to find the right product for your business.

Correct for current hardware 2021
Core GIS Features
Customer Data Collection
Advanced Firewall
PayPal® Credit Card Billing
Rack-mountable (1U)
Dual WAN Load balance/Failover
Quad WAN Load balance/Failover
High performance multi-core CPU
Built-in Wireless (WiFi)(Mb/s)
300
300
300
300
Minimum throughput (Mbps)*
60
75
75
75
100
150
200
400
600
1000
*Throughput is dependent on network infrastructure and gateway options. You can read more about this here

There are no limits on the number of users but capability is dependent on type and quantity of devices traffic and gateway options

GIS - PRO

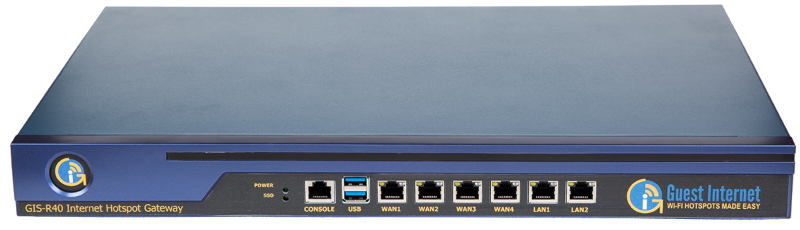

Guest Internet - GIS-R40


GIS-R40

High performance Hotspot Gateway for large scale applications, built with the latest generation Intel quad core processor.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN4 (Internet) RJ-45 Gb/s
LAN1-LAN2 (network) RJ-45 Gb/s

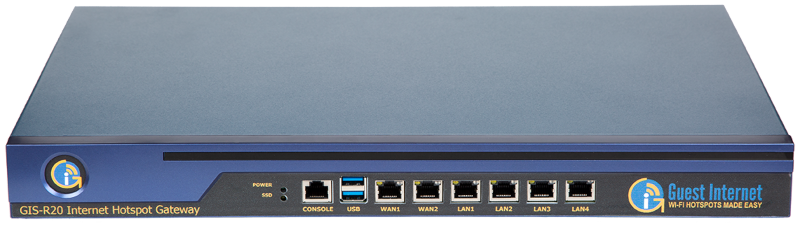

Guest Internet - GIS-R20


GIS-R20

High performance Hotspot Gateway for large scale applications, built with the latest generation Intel dual core processor.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

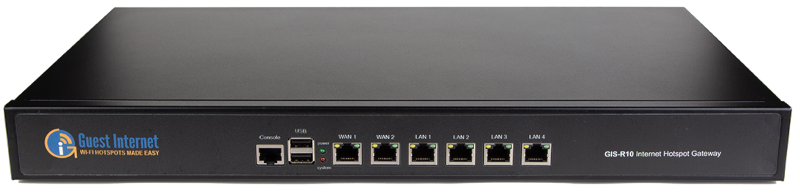

Guest Internet - GIS-R10


GIS-R10

High performance dual WAN Hotspot Gateway with four independent isolated LAN ports, load balance and fail-over

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s


GIS - BUSINESS

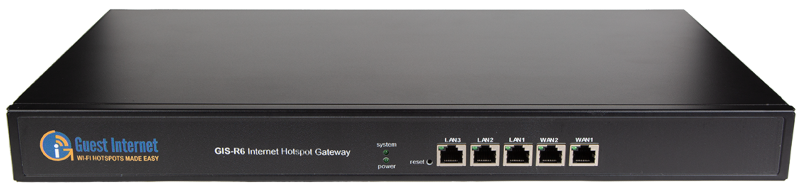

Guest Internet - GIS-R6


GIS-R6

High performance dual WAN Hotspot Gateway with three independent isolated LAN ports, load balance and fail-over

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN3 (network) RJ-45 Gb/s




Guest Internet - GIS-R4


GIS-R4

High performance Hotspot Gateway with four independent isolated LAN ports.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

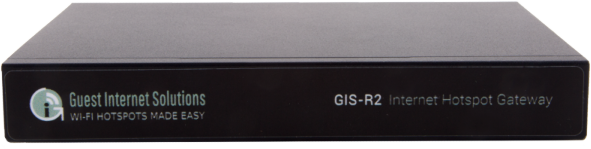

Guest Internet - GIS-R2


GIS-R2

High performance Hotspot Gateway with four independent isolated LAN ports.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, Login, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s




GIS - WIRELESS

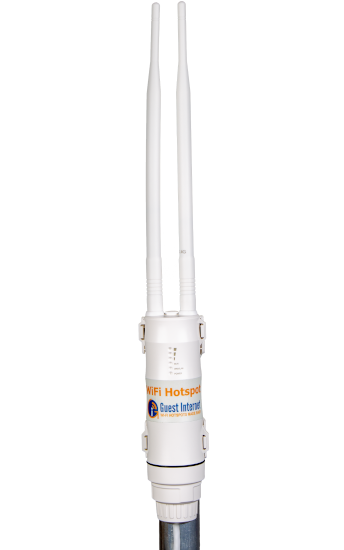

Guest Internet - GIS-K7


GIS-K7

Outdoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +27dBm (800mW)
6dBi omnidirectional antenna
Polarization: Vertical

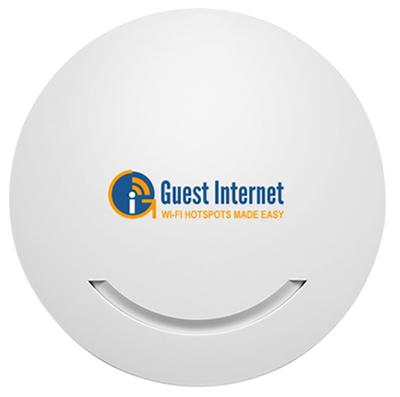

Guest Internet - GIS-K5


GIS-K5

Indoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +23dBm (200mW)
Omnidirectional antenna, ceiling mount
Polarization: Horizontal+Vertical

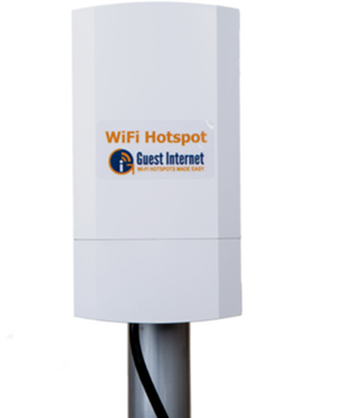

Guest Internet - GIS-K3


GIS-K3

Outdoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +23dBm (200mW)
8dBi Panel Antenna, H:60o V:33o
Polarization: Horizontal+Vertical

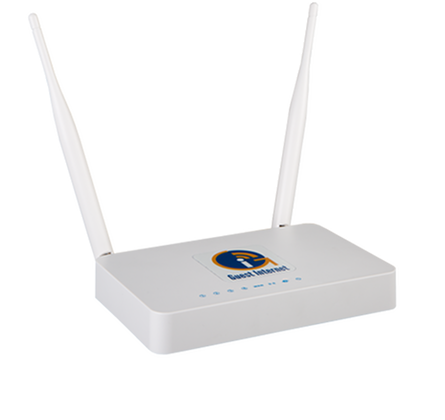

Guest Internet - GIS-K1


GIS-K1

Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN-LAN4 RJ-45 10/100
Wireless port: 802.11/n, 100Mb/s


GIS - EXTRAS




Guest Internet Printer - GIS-TP1


GIS-TP1

The GIS-TP1 adds access code ticket printing to any GIS hotspot gateway product. The ticket printer has an Ethernet interface and connects to the gateway's LAN network. A tablet computer can be used to control the printer. Buttons are displayed on the tablet screen for up to 10 different access code durations. Touching any button causes the ticket to be generated and printed.
