Extra Information Setting Static IP address Windows OS

Windows 7, Windows 8, Windows 10

The Static IP address below is the GIS configuration for the LAN1 on units above the GIS-R6. To set up an access point, please check on the manual what is the IP address and Subnet mask provided.

• Open Settings/Control Panel

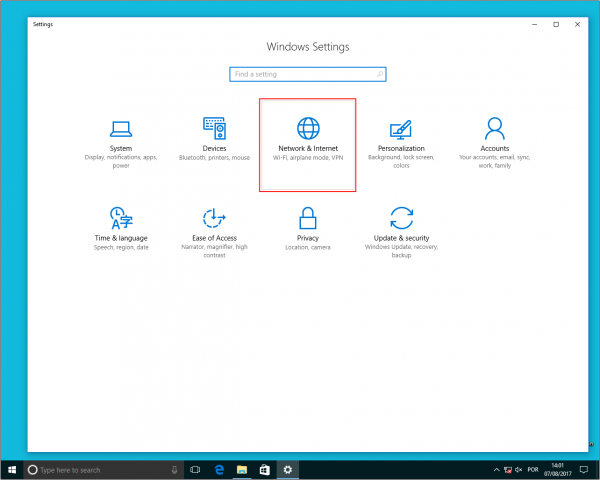

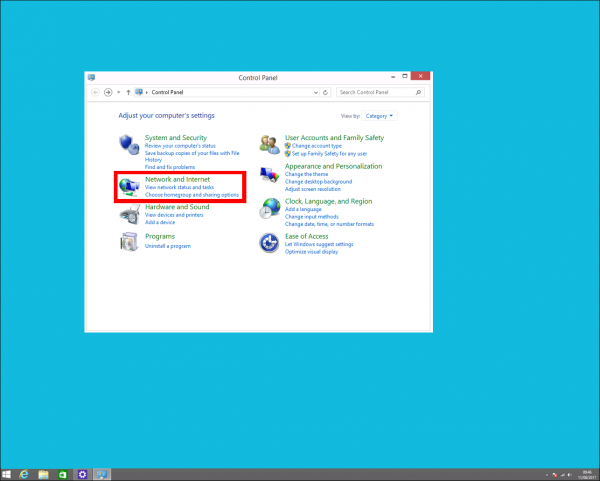

• Open Network & Internet

• Click Network and Sharing Center

• Click Change adapter settings

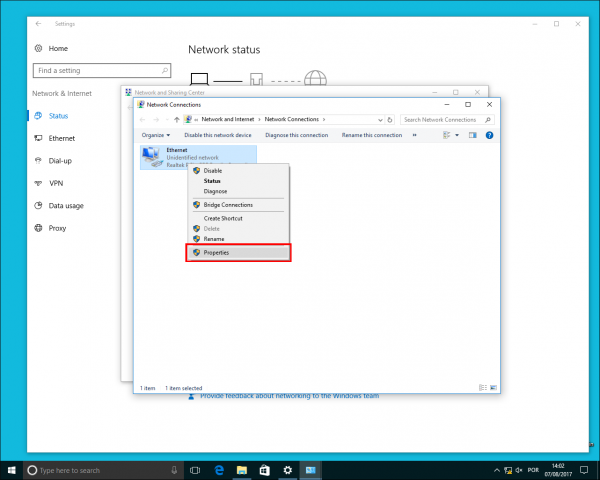

• Right click the network connection and click Properties

• Select Internet Protocol Version 4 (TCP/IPv4) and click Properties

• Select Use the following IP address:
  • IP address: On the range of the LAN port being used, to see default range click here
  • Subnet Mask: 255.255.240.0
  • Default Gateway: 192.168.96.1
